Joysticks

The "MJS" Series joystick, or "micro" joystick is a miniature Proportional Hall-Effect joystick with only 3 moving parts. Designed for exposed applications, this simple thumb-operated joystick provides an additional 2 axis of proportional control within a control grip faceplate.

The micro joystick is made from wear resistant plastic polymer providing a consistent smooth operating feel while optimizing the service life of the part. Compact mounting is achieved by threading a nut directly to the body of the micro joystick.

Features

• Miniature dual axis proportional Hall Effect joystick
• Sealed to IP67 for exposed applications
• Available with thumbrest
• Dual axis, spring return operation
• 5 VDC input, tested to 1 million cycles

‍

For additional features, and product dimensional data, see technical guide.

The all new JSA single axis joystick is the ideal control solution for the scissor lift market. Our unique patent pending design provides great feel, durability, and the high quality you expect from Sure Grip Controls. Utilizing contactless Hall sensor technology, the JSA sets the standard in reliable control.

The JSA offers excellent sealing, minimum below the panel depth, and mounting compatibility with virtually all other single axis joysticks.

Features

• Long life – tested to 5 million cycles (20 million operations)
• IP69K sealing
• Multiple mounting options
• Excellent Resolution: ±30° travel
• 100 V/m EMC Immunity

‍

For additional features, and product dimensional data, see technical guide.

‍

Now Available In SAE J1939, CANopen and Analog Versions

The award winning JSC Series Joystick base is the next evolution of Sure Grip joysticks. Using the industry proven JSM Joystick base as a foundation, the JSC sets the new standard for high performance industrial joystick bases. Designed for high volume applications, this configurable control can be paired with the perfect Sure Grip handle for your needs and features like the integrated deutstch connector make installation quick and easy. Tested to the most extreme industry standards, the JSC joystick base is made to last.

Features

• Outputs: SAE J1939, CANopen and Analog Versions

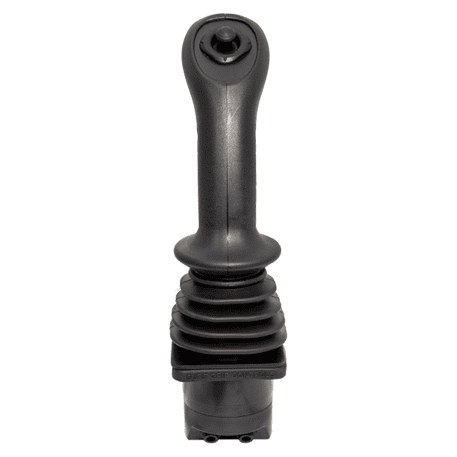

Our Sure Grip Controls "JSM" Series electronic joystick is our second generation joystick that incorporates the newest Hall sensor technology and advanced internal wire configuration. With all the electronics now relocated in the cap, it improves serviceability and allows us to offer CAN, Proportional, Switched, USB, and PWM output options in both single and dual axis spring-return-to-center or friction hold configurations.

The "JSM" joystick can be configured with our JE, LE, KE and NE control grips. For gate options, electronic and output options, see technical guide.

Features

• Configurable with the JE, LE, KE, NE series control grips
• Incorporates the newest Hall sensor technology & internal wiring
• Offered with CAN, proportional, switched, USB, and PWM outputs
• Single and dual axis spring-return-to-center or friction hold configurations available
• Tested to 5 million cycles

‍

For additional features, and product dimensional data, see technical guide.

Our Sure Grip Controls "JSL" Series electronic joystick is our second generation joystick that incorporates the newest Hall sensor technology and advanced internal wire configuration. With all the electronics now relocated in the cap, it improves serviceability and allows us to offer CAN, Proportional, Switched, USB, and PWM output options in both single and dual axis spring-return-to-center or friction hold configurations.

The joystick can be configured with our JE, LE, KE and NE control Grips. For gate options, electronic and output options, see technical guide.

Features

• Configurable with the JE, LE, KE, NE series control grips
• Incorporates Sure Grips’ “Gimbal Mounting” system
• Permits up to 20 degrees of mounting adjustment with 360 degree rotation
• Incorporates the newest Hall sensor technology & internal wiring
• Offered with CAN, proportional, switched, USB, and PWM outputs
• Single and dual axis spring-return-to-center or friction hold configurations available
• Tested to 5 million cycles

‍

For additional features, and product dimensional data, see technical guide.
